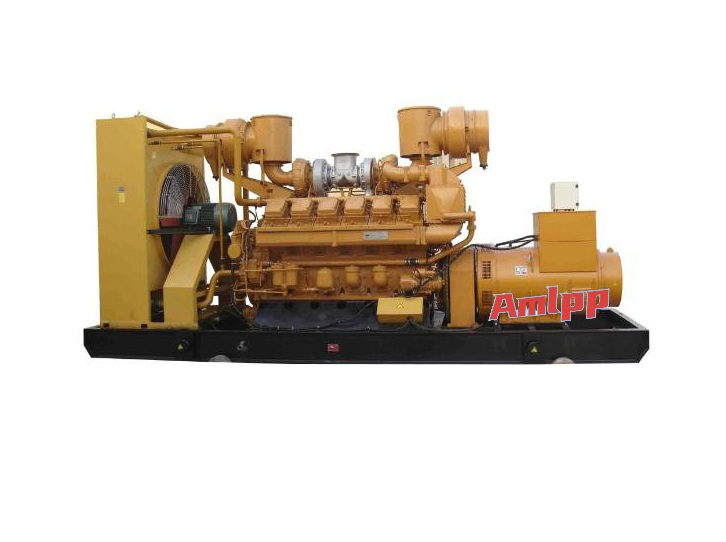

Jinan Diesel Engine 250GF

Product ID:{dede:field.cpid/}

Product Info1:{dede:field.proinfo/}

Product Info2:{dede:field.proinfoer/}

Shelf time:2021-08-21 12:36:26

Product description:1. The fixed installation of the generator set needs to use a concrete foundation. The depth and scope of the foundation are determined by the weight and external dimensions of the unit. Generally the foundation depth of a 250kW unit is ab

1. The fixed installation of the generator set needs to use a concrete foundation. The depth and scope of the foundation are determined by the weight and external dimensions of the unit. Generally, the foundation depth of a 250kW unit is about 350mm. If it is not fixedly installed, the vibration damping effect should be used under the chassis. Pad to prevent excessive vibration.
2. In addition to meeting its own noise index (detection index at 1m), the generator set should also consider the impact of its noise on the environment. Generally, a muffler device is required to reduce noise pollution.
3. The engine room of Jichai diesel generator should be well ventilated and cooled, and the minimum temperature should be above 0℃. Especially in the cold winter, anti-freezing and warming measures should be taken for fuel, lubricating oil and cooling water.
4. The maintenance of the unit is mainly the maintenance of the diesel engine. Regular maintenance shall be carried out according to the requirements of the diesel engine manual. After the unit is successfully started, pay close attention to the oil pressure. When the standby oil pressure reaches 0 5 bar, it can gradually accelerate. Only when the diesel engine's outlet water temperature is higher than 70 ℃, the oil temperature is higher than 45 ℃, and the oil pressure is higher than 25 bar. Can enter full load operation. When the unit is working normally, the water temperature should not exceed 90℃, the oil temperature should not exceed 95℃, and the oil pressure should be within the range of 25-4 bar.
5. Although the Jichai generator set is a backup power source, it should be run at regular intervals (about two weeks) to keep it in a good standby state.



MODEL Rate utput Motor Type Gen Type Overall SizeL×W×H(mm) Weight(kg)
(KW/KVA)
250GF 250/321.5 4190ZLC TFW 3500×1750×2800 6200
300GF 300/375 4190ZLC TFW 3500×1750×2800 6300
400GF 400/500 Z8V190B TFW 4950×1750×2800 9500
500GF 500/625 Z8V190B TFW 4950×1750×2800 9700
630GF 630/787.5 Z12V190B TZHW OR TFW 5900×1750×2800 10500
700GF 700/875 Z12V190B TZHW or TFW 5900×1750×2800 10800
800GF 800/1000 Z12V190BD7 TZHW or TFW 5900×1750×2800 11850
1000GF 1000/1250 Z12V2000BG3 TZHW or TFW 6200×1750×2800 13200
1200GF 1250/1500 A12V190ZLD TFW or IFC 6200×1750×2800 16800
