Daikin hydraulic pump, Daikin plunger pump is an important device of hydraulic system. It relies on the reciprocating movement of the plunger in the cylinder to change the volume of the sealed working chamber to achieve oil absorption and pressure.
Daikin Industry Co., Ltd. (Japanese: ダイキンこうぎょう) is a Japanese multinational company headquartered at 5-2, Kouribashi 4-chome, Chuo District, Osaka City, Osaka Prefecture, with a registered capital of 28 billion yen. Now it has more than 90 branches in Japan, China, Taiwan, Australia, Southeast Asia, Europe and North America. It was founded by Akira Yamada (Japanese: やまだあきら) on February 11th, 1934 (Showa 9) in Osaka under the name of "Osaka Metal Industry Institute". Now it is committed to the chemical industry, hydraulic machinery, special machinery and air-conditioning systems. It is a world-class comprehensive fluorochemical professional manufacturer.
The Chinese name of DAIKIN is Daikin Industrial Co., Ltd. DAIKIN was established on October 25, 1924, and has a history of more than 80 years since its establishment. Although it has experienced the oil crisis and bubble economy era, Daikin is still active in today's world stage with a majestic figure and continues to grow and develop with its leading technology and excellent business philosophy. From Japan to Europe, America, and Asia, DAIKIN has become a first-class global enterprise step by step, and is constantly committed to the research and development of more efficient, energy-saving, and environmentally friendly new technologies, making great contributions to various fields such as hydraulic machinery. The main areas are: air conditioning and refrigerators, hydraulic technology, defense systems, chemical engineering, computing systems, etc. Its products include: variable frequency hydraulic systems, hydraulic stations, plunger pumps, motors, flanges, pressure control valves, flow control valves, directional control valves, modular superimposed valves, cartridge valves, proportional valves and servo valves.
Daikin plunger pump
Daikin plunger pump is an important device of hydraulic system. It relies on the reciprocating movement of the plunger in the cylinder to change the volume of the sealed working chamber to achieve oil absorption and pressure. Plunger pumps have the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment. They are widely used in occasions where high pressure, large flow and flow need to be adjusted, such as hydraulic presses, construction machinery and ships. The performance overview of daikin plunger pump is as follows: V-type plunger pump, with a unique design of the swash plate to change the angle function. It is widely used in various places. Special design to maintain low noise performance in the full pressure zone. The integration of multiple control methods can form a system, which has the advantages of energy saving, miniaturization, and low-cost functions. The power loss is small, the oil temperature rise is reduced, and a smaller oil tank is optional. It is widely used in machine tools, machine tools, forging, plastic forming machines, etc. Low noise, all pressure ranges in each series have realized low noise operation; high efficiency, due to small power loss; good reliability, high sensitivity, high stability, and long life, which increase the reliability of the host.
Daikin vane pump
Daikin DAIKIN compact single-stage vane pump has low noise-due to the size of the suction port is large enough, the resistance through the suction port is small, thus achieving low noise operation. High efficiency-The elastic cushion system keeps the lateral clearance constant, so the low-pressure pump has no blockage and wear, and can maintain stability and high efficiency. Low pulsation-because the cam cannot reduce the change of displacement, the running sound is small, the pulsation is small, so the characteristics of good stability, etc. have the advantages of uniform flow, stable operation, small noise, small size, light weight and so on. It is widely used in machine tools, engineering machinery, ships, die-casting and metallurgical equipment. The working pressure of medium and low pressure vane pumps is generally 8MPa, and the working pressure of medium and high pressure vane pumps can reach 25MPa to 32MPa. The disadvantage of vane pumps is that they are more sensitive to oil pollution than gear pumps, and require higher oil cleanliness; and due to the influence of vane ejection force, oil suction speed and wear and other factors, the speed of the pump should not be too high, nor should it be too high. Small, generally can be used in the range of 600~2500rpm; the structure of the pump is also more complicated than the gear pump.
Vane pumps are mainly divided into two forms: single-acting (perfect suction and discharge of oil once per rotor revolution) and double-acting (suction and discharge oil twice per rotor per revolution). Compared with the single-acting vane pump, the double-acting vane pump has better flow uniformity, and the radial hydraulic pressure on the rotor body is basically balanced.
High-density media discharge: Due to the use of a supporting swash plate, it is small, lightweight, and high-pressured, thereby increasing the output power per unit weight.
Low working noise: While improving the rigidity of the swash plate structure, the frame designed with the latest measurement and analysis technology is used to greatly reduce the running noise.
High efficiency: The use of ball valve plate and suitable oil pressure balance expands the operating conditions and produces high efficiency.
Long-term operation: Due to the use of excellent wear-resistant ball valve plates, the anti-pollution characteristics are strengthened.
DAIKIN plunger pump, DAIKIN hydraulic pump, DAIKIN variable pump, DAIKIN oil pump,
DAIKIN V series plunger pump: V8, V15, V23, V38, V50, V70.
DAIKIN VD series double pump: VDS11P-S2, VDS12P-S2, VDS13P-S2, VDS14P-S2.
DAIKIN VZ series plunger pump: VZ50, VZ63, VZ80, VZ100, VZ130.
V series plunger pump
Fixed model of variable capacity plunger pump. Low noise, high efficiency, high reliability and serialization in the range of 8～70cc/rev.
VZ series plunger pump
High output density is achieved by adopting slotted support sloping plate. Serialized in the range of 50～130cc/rev.
VD series 2 pumps
Two pumps that integrate the V series plunger pump and vane pump
V1515 series 2 pumps
V15 for 2-stage plunger pump
Super unit
1. Energy-saving
Energy-savings of 50% (20.6MPa at pressure retained) is realized to give extraordinary cost performance.
(*Compared with a conventional Daikin vasiable piston pump)
Air-conditioning motor technology and tandem pump selecting control technology are fused to attain high energy saving effects.
Not only at retained pressure but also in the field of general industrial machinery where actuators are frequently operated, such high-efficiency motors will greatly reduce power consumption and other energy savings.
2. Low heat generation
In view of the energy-saving goal, generation of heat is dramatically suppressed and it can reduce the heat load to the air-conditioning unit.
This reduces the heat load on the air-conditioning unit. Effectiveness by low heat generation.
Preventing rise of oil temperature and deterioration of operating oil
Space savings and the reduction oil capacity given that tank size is reduced
Eliminates the need of an oil cooler
Suppresses the heat load on the air-conditioning unit
3. Low noise
Low noise 60dB (A) (20.6MPa at retained pressure) is achieved. In all of the operation areas, the noise is 73dB(A) or less.
The motor is controlled at a lowest optimum speed under retained pressure condition, which achieves the extremely low noise level.
The phase-differential tandem pump attains low pulsation and low noise (Double-pump specification)
4. Excluded from high-efficiency motor regulations
High-efficiency motor regulations came into effect in Japan in April 2015. These regulations apply to the hydraulic units equipped with general motors but the SUPER UNITs that incorporate a high-efficiency IPM motor are excluded from them.
Advantages of using hybrid hydraulic units
Eliminates the need for replacement of motors for each destination
Eliminates the need for design changes in accordance with amendments to the regulations
Reduces design changes to spare parts, and the maintenance workload
5. All models conforming to CE standards
All models conform to the machinery directive, EMC directive, and low voltage directive. This facilitates CE approval of the main machine.
6. IoT-ready
The IoT-compatible Daikin hybrid systems reduce waste and losses at factory sites.
With the hybrid system, it is possible to fetch information including not just hydraulic fluid pressures and flow rates but also internal information about the equipment such as power consumption and motor temperatures.

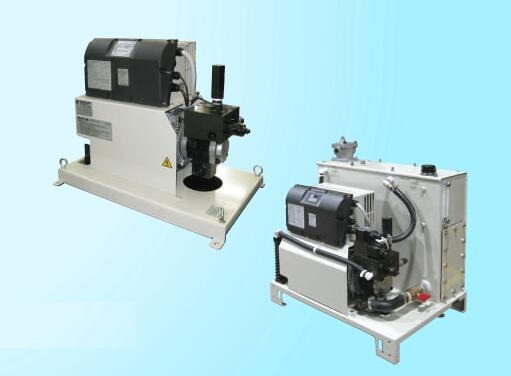

Energy-saving hydraulic unit
EHU(40), features:
Renewed and equipped with high-efficiency IPM motor. An energy-saving hydraulic unit for the machine tool industry that greatly improves energy saving and low heat generation. Because it is not regulated by the high efficiency of the motor, it can be used with peace of mind without regional influence.
EHUR, features:
Using high-efficiency IPM motor, energy-saving hydraulic unit for machine tool industry. Because it is not regulated by the high efficiency of the motor, it can be used with peace of mind without regional influence.
Motor pump
M series motor pump, features:
V series plunger pump and motor integrated motor pump. No connection operation is required. It is the counterpart to the high-efficiency regulation of ordinary motors.
