Waste heat regeneration compressed air dryer

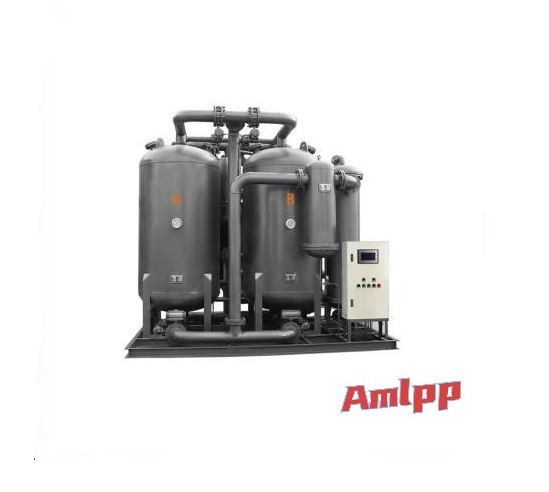

ADO waste heat regeneration compressed air dryer

Rated processing gas volume 0.5~600Nm³/min
Working pressure 0.50~1.6MPa
Inlet temperature 110℃~220℃
Finished product gas dew point -40℃
Regeneration air consumption 2%~3%
Cooling water temperature 32℃
Cooling water pressure 0.2~0.4MPa
Adsorption cycle 8 hours or dew point control (switchable)

working principle
The waste heat regeneration compressed air dryer is an adsorption desiccant developed by the process of directly heating and regenerating the desiccant by using the heat of the high-temperature exhaust gas of a high-pressure machine. It avoids the shortcomings of short switching time of the non-heat regeneration compressed air dryer and large regeneration air consumption. At the same time, it also overcomes the shortcomings of the thermal regeneration compressed air desiccant that consumes large electricity. The waste heat regeneration compressed compressed air dryer has no gas consumption and low energy consumption during heating and regeneration. It is a new type of energy-saving equipment.

Configuration function
?The dew point of the finished product is stable;
?Using PLC control, LCD real-time display of equipment operating status;
?Multiple fault alarm and processing functions;
?Reserve a regenerative heater and start it when the exhaust temperature of the air compressor is low to prevent insufficient regeneration of the desiccant. It can also be manually switched to normal micro-heat operation;
?Optional RS485/RS232, linkage interface and dew point detection function;
?Reasonable structure design, easy to operate and maintain.


Technical index
?Processing gas volume: 0.5~600Nm³/min
?Inlet temperature: 110℃-220℃
?Dew point of finished product: -40℃
?Cooling water temperature: 32℃
?Working pressure: 0.50-1.6MPa
?Cooling water pressure: 0.2-0.4MPa
?Air consumption for regeneration: 2%~3%
?Adsorption cycle: 8 hours or dew point control (switchable)
