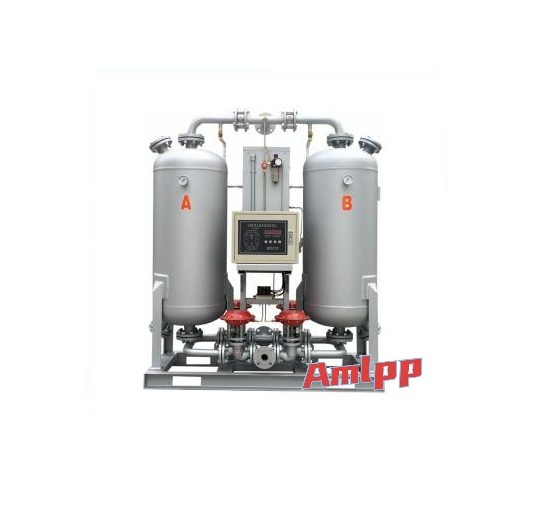

ADH micro heat regeneration dryer

Product ID：{dede:field.cpid/}

Product Info1：{dede:field.proinfo/}

Product Info2：{dede:field.proinfoer/}

Shelf time：2021-08-21 11:11:15

Product description：Rated processing gas volume 1~500Nm/min Working pressure 0.6~0.8MPa (available for 0.8~3.0MPa) Inlet temperature ＜38℃ Pressure loss ≦0.02MPa Finished product gas dew point -40℃ or -52℃ Ambient temperature 38℃ Regeneration air co

Rated processing gas volume 1~500Nm³/min
Working pressure 0.6~0.8MPa (available for 0.8~3.0MPa)
Inlet temperature ＜38℃
Pressure loss ≦0.02MPa
Finished product gas dew point -40℃ or -52℃
Ambient temperature 38℃
Regeneration air consumption ≦6%

working principle

The micro-heat regeneration air dryer is a product developed by absorbing the advantages of thermal regeneration and non-thermal regeneration. The regenerated gas regenerates the desiccant after raising the temperature, which can improve the regeneration effect and reduce the regeneration consumption. Air volume

Configuration function

?Low regeneration air consumption and low energy consumption;
?The dew point of the finished product is stable;
?Microcomputer control, LCD, LED real-time display of equipment operating status;
?Multiple fault diagnosis, alarm and automatic processing functions;
?The heating control adopts non-contact solid-state switch, the temperature control overshoot is small, and the service life is long;
?If the micro-heat operation mode fails, it can automatically switch to the non-heat operation mode (national patent technology)
?With online parameter modification and protection functions;
?Online dew point control function with national patent technology can maximize energy saving (can be equipped first);
?Optional RS485/RS232 communication interface and joint control function.

Technical index

?Rated processing gas volume: 1~500Nm³/min
?Working pressure: 0.6-0.8MPa (0.8-3.0MPa available)
?The dew point of finished product: ≦-40℃ or ≦-52℃
?Inlet air temperature: <38℃
?Environmental temperature: 38℃
?Air consumption for regeneration: ≦6%
?Pressure loss: ≦0.02MPa.
