Nitrogen Purification Equipment

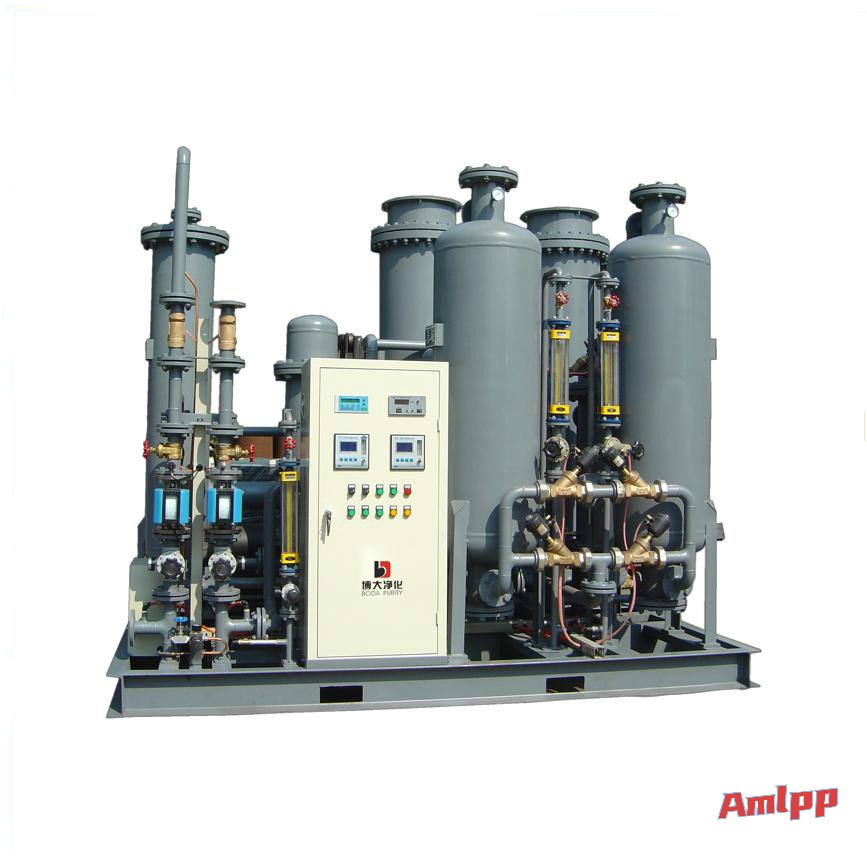

BHP Nitrogen Purification Equipment

Nitrogen Output 10~2000Nm³/h
Nitrogen Purity ≧99.995% or ≧99.9995%
Nitrogen Dew Point ≦-60℃
Oxygen Content ≦5ppm
Hydrogen Content 500ppm~5%(adjustable)

Working Principle


Under the action of catalytic agent,the oxygen in the low-purity nitrogen and the hydrogen added into the system generate water after combustion reaction.After removing the residual oxygen and further denitrification,it goes into drying system to dehydrate deeply and high-purity nitrogen is produced.

Configuration Function

?Automatic nitrogen-adding and-proportioning device with national patented technology has high control precision and reliable safety;
?Energy-saving technique with national patented technology makes the energy consumption ofthe system reduce greatly;
?Automatic venting device with national patented technology ensures the quality of the produced nitrogen;
?The key parts of the system adopt the famous brand,which is the effective guarantee of the equipment quality;
?It has functions of diagnosis,alarming and automatic troubleshooting for several failures;
?The centralized monitoring system can provide centralized monitoring of the auxiliary equipments such as nitrogen PSA equipment,nitrogen production device,etc.
?DCS communication interface is optional.


Technical Indexes

BHP-I type
? Nitrogen Output: 10 ~ 2000 Nm³/h
? Nitrogen Purity: ≥ 99.995%
? Oxygen Content: ≤ 5 ppm
? Hydrogen Content: 500 ppm ~ 5% (adjustable)
? Dew Point: ≤ - 60 ℃



BHP-II type

? Nitrogen Output: 10 ~ 2000 Nm³/h
? Nitrogen Purity: ≥ 99.9995 %
? Oxygen Content: ≤ 5 ppm
? Hydrogen Content: ≤ 5 ppm
? Dew Point: ≤ - 60 ℃
